Edimax
4 Port Desktop ADSL Modem / Router
AR-6024

AR-6024W

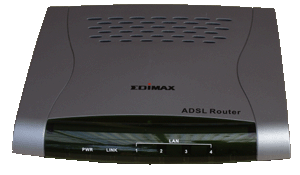

(Non Wireless version shown)

Best solution and cost-effectively for SOHO Internet access with ADSL Modem and sharing local network to broadband Internet.

Full Rate ADSL Connection
The ADSL Router can directly connect with ADSL telephone line to all leading ISPs and with full data rate. The Maximum downstream andupstream transfer rate up to 8Mbps and 1Mbps.


Features

  • Complies with with ANSI T1.413 Issue 2, ITU G.dmt(G.992.1) and ITU G.lite(G.992.2) ADSL standards.
  • Supports PPPOA, PPPOE, Routing, Bridge, and classical IP Mode.
  • Supports multiple users using one IP address sharing Internet access with network address translation.
  • 1 WAN (RJ-11 ADSL port) and four auto-sensing 10/100BaseTx and one USB ports for local network.
  • LAN clients can connect directly with broadband internet without hub or switch.
  • Q-Start Installation Wizard for quick installation and web-based browser management for Win 98SE/Me/2000/XP.
  • Maximum downstream/upstream transfer rate of 8Mbps/1Mbps for G.dmt.
  • Maximum downstream/upstream transfer rate of 1Mbps/512kbps for G.lit.
  • Supports RFC-2364 PPP over ATM, RFC-2516 PPP over Ethernet, RFC-2684/1483 Bridged/routed Ethernet over ATM, RFC-1577 classical IP over ATM, IEEE802.1D Ethernet to ADSL self-learning transparent bridging.
  • Supports IP routing-RIPv2, static routing, DHCP, NAT, NAPT, ICMP, IGMP, and Ethernet operation.
Package Contents
  • 1 AR-6024 ADSL Modem / Router
  • 1 x Power Supply
  • 1 User Manual
  • 1 Quick Start Software CD

Specifications
Ethernet Connections 4 x 10/100TX Autosensing
USB Connection
 Compliant with USB Specification, V1.1
ADSL Connection RJ-11(2 wires)
Bridge Mode Support
 Ethernet to ADSL self-learning Transparent Bridging (IEEE 802.1D) Supports up to 128 MAC learning addresses
Router Mode Support
 IP routing-RIPv2 (backward compatible with RIPv1) static routing DHCP (Dynamic Host Configuration Protocol) Server and Client NAPT (Network Address and Port Translation) NAT (Network Address Translation) ICMP (Internet Control Message Protocol) Ethernet operation IGMP (Internet Group Management Protocol)
WAN Mode Support
 PPP over ATM (RFC 2364)PPP over Ethernet (RFC 2516)
LAN Mode Support
 Bridged/routed Ethernet over ATM (RFC 2684/ 1483)Classical IP over ATM (RFC 1577) and PPP over Ethernet (RFC 2516)
OS Support
 WIN 98 ; WIN 2000；WIN ME；WIN XP
Power Supply Input : 200~240V , 50/60Hz Output : 16VAC/1000mA
LED Indication Power , Ready(Status), Showtime(LINK/ACT), WLAN, Speed 10M/100M*4, Link/Activity*4
Street Price £99.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
