Edimax

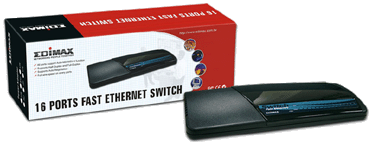

16 Port Fast Ethernet Switch
ES-3116P


  ES-3116P

16 Port Fast Ethernet Desktop Switch

The Edimax 16-port Fast Ethernet switch is perfect for improving the performance of small network. This switch satisfies the need for high-quality products at an affordable price - enabling even the most budge-conscious organizations to trade up to the next level of networking power.This switch supports 10/100Mbps auto-negotiation on all ports, for seamless migration to 100Mbps connections without time-consuming trips to the wiring closet whenever end stations are upgraded to Fast Ethernet. All ports also automatically sense half or full duplex connections for high speed server or switch-to-switch configurations.


Features

  • Complies with the IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet
  • Provides Store-and-Forward architecture and full wire speed forwarding and filtering rates
  • All of UTP ports support Auto-MDI/MDI-X function
  • All of UTP Ports support full/half duplex modes and auto-negotiation
  • Supports flow control: back pressure for half-duplex mode, IEEE 802.3x for full-duplex mode
  • Extensive front-panel diagnostic LEDs
  • Desktop design

Auto-Negotiation - Plug and Play
Every individual port is capable of automatic sensing the connected device's speed (10Mbps or 100Mbps) and duplex (Half or full) mode. It's 100% transparent to users - a truly plug and play device.

Full Duplex
The full duplex feature can double the network throughput on every port. It is used for high speed server or switch-to-switch connections. The maximum throughput of every port can reach up to 200Mbps !

Non-Blocking
This switch delivers non-blocking performance at full-duplex on all ports. This feature provides full wire speed to the connected devices and greatly increases the network performance.

Store and Forward
This switch is designed with store and forward architecture that eliminates error packets in the network, improving efficiency.

Specifications
Ethernet Connections 16 x 10/100TX Autosensing
LAN Connection RJ-45
Standards IEEE802.3 IEEE802.3u IEEE802.3x
Buffer Memory
 256K
MAC Addresses
 4K
Dimensions
 30(H) x 127(W) x 83(D) mm
Temperature
 0~55 Degree C
Humidity 10~90% (Non-Condensing)
Certification FCC Part 15 Class A & CE Mark Approval
Street Price £35.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
