Edimax

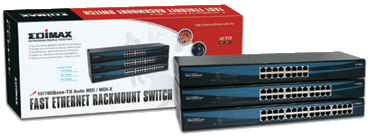

24 Port Fast Ethernet Switch
ES-3124RL


  ES-3124RL

24 Port Fast Ethernet Rackmount Switch

Edimax's 24 ports Fast Ethernet Switch brings you the most powerful high speed network solutions. You can deploy Fast Ethernet switching wherever needed, from the backbone down to individual desktops. This switch satisfies the need for high-quality products at an affordable price - enabling even the most budge-conscious organizations to trade up to the next level of networking power.

This switch supports 10/100Mbps auto-negotiation on all ports, for seamless migration to 100Mbps connections without time-consuming trips to the wiring closet whenever end stations are upgraded to Fast Ethernet. All ports also automatically sense half or full duplex connections for high speed server or switch-to-switch configurations. The aggregate bandwidth of this switch can reach up to 3Gbps.


Features

  • Complies with the IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet
  • Provides Store-and-Forward architecture and full wire speed forwarding and filtering rates
  • All of UTP ports support Auto-MDI/MDI-X function
  • All of UTP Ports support full/half duplex modes and auto-negotiation
  • Supports flow control: back pressure for half-duplex mode, IEEE 802.3x for full-duplex mode
  • Extensive front-panel diagnostic LEDs
  • Rackmount size design




Specifications
Ethernet Connections 24 x 10/100TX Autosensing
LAN Connection RJ-45
Standards IEEE802.3 IEEE802.3u IEEE802.3x
Buffer Memory
 160K
MAC Addresses
 8K
Dimensions
 44(H) x 441(W) x 130(D) mm
Temperature
 10~55 Degree C
Humidity 0~90% (Non-Condensing)
Certification FCC Part 15 Class A & CE Mark Approval
Street Price £55.00

All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
