32 Port Fast Ethernet Switch
SH-7332B

SH-7332B

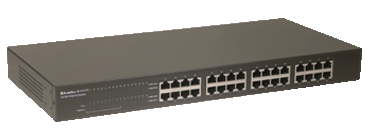

 32 Port  Fast Ethernet Rackmount Switch

The SH-7332B Switch is a cost-effective Ethernet switch that meets all IEEE 802.3x Fast Ethernet specifications. It is equipped with 32 10/100Base-T ports with auto negotiation.



Features

  • Half and Full duplex operation
  • Plug-and-play Auto-negotiation for speed and  duplexity
  • True non-blocking architecture for full wire speed forwarding
  • Store-and-forward switching mechanism
  • Back pressure and IEEE 802.3x compliant flow control
  • Supports 32K MAC address
  • Embedded 4Mbit SSRAM packet buffer
  • Provide 6.4G back-plane bandwidth
  • Automatic source address learning and aging
  • Standard 19" Rack-mount design

Standard
IEEE802.3 10Base-T
IEEE 802.3u 100Base-TX / 100Base-FX

Protocol
CSMA/CD

Network Media
100Base-TX – Category 5 EIA/TIA-568 twisted pair Cable
10Base-T – Category 3,4,5 EIA/TIA-568 twisted pair Cable

Connector
Shielded RJ-45 for all ports

Network Data Transfer Rate
Ethernet : 10/20Mbps (half/full duplex)
Fast Ethernet : 100/200Mbps (half/full duplex)

LED indicators
System – Power LED
Individual port – Link/ACT, 10/100M, FDX/COL LED

Power
100~240VAC, 50-60Hz auto-sensing internal switching power




Specifications
Ethernet Connections 32 x 10/100TX Autosensing
LAN Connection RJ-45
Standards IEEE-802.3, IEEE-802.3u, IEEE-802.3ab
MAC Addresses
 32K
Dimensions
 44(H) x 440(W) x 200(D) mm
Weight
 4.2kg
Temperature
 0~50 Degree C (Operating)
Humidity 10~90% (Non-Condensing)
Certification FCC Part 15 Class A & CE Mark Approval
Street Price £250.00
