ARS-2033N Copy Smart Plus

1-to-21 DVD Copy Duplicator with LCD display.  16x speed DVD-/+R/RW and 52x speed CD-R/RW Drives supported

 ARS-2033N

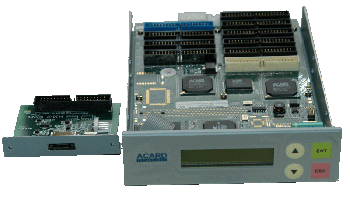

ARS-2033N The ACARD DVD Copier is a standalone DVD controller that will allows you to carry out duplicator requirement without taking up the resources of your computer. It is initiated with the simple press of a button, no software or training is required. The ACARD DVD Copier is designed for the user who are looking a way of making instant copies of original CD or DVD data, more efficiently and simply. For users such as personal, SOHO and office users. It provides a flawless function in duplicating any format of media with excellent accuracy. With its professional mechanism design and multi-function LCD panel, ACARD DVD Copier is easy for any end-user to operate. It is a perfect cost-effective DVD duplicator for audio, data, and video applications. By purchasing the optional AEC-4420P USB link you can connect this controller to your computer, for ease of downloading CD or DVD images.

The ARS-2033N comes in two varieties
  • ARS-2033NH   This is the host controller which works either as a simple 1 to 7 controller or by the addition of a AEC-4430H SATA board can connect to an ARS-2033NT equipped Tower making the perfect 1 to 14 duplicating system. You can also add a further AEC-4430H SATA board (total of two) and connect to a further ARS-2033NT equipped Tower to make the ideal 1 to 21 duplicating system
  • ARS-2033NT    This is the target controller. This comes with the AEC-4430T SATA board and using simple SATA connections (supplied) can be combined with the ARS-2033NH to make a 1 to 14 or even a 1 to 21 duplicating system.
  • One Host, One Target and One host SATA bridge required for 1 to 14,  One Host, Two Targets and Two host SATA Bridges required for 1 to 21


Features

  • Standalone IDE to IDE DVD Copy Controller
  • Independent IDE channel accelerates data transfer
  • Self diagnostics when power on
  • Support internal 3.5" hard drive for data storage
  • User friendly interface with message on LCD display
  • Automatic DVD format detection
  • 16x DVD Write speed supported
  • Easy operation without software and training required
  • Firmware upgrade via CD or DVD-ROM
  • Provides link tower functions to extend

Optional Kit for tower link up*
  • AEC-4430H for host controller IDE-to SATA link
  • AEC-4430T for target controller IDE-to-SATA link

Specification

  • Chip: ACHIP ATP-867 IDE processor
  • independent IDE interface channels
  • Data buffer:128MB DDR memory
  • Product interface: IDE
  • 512KB flash memory for boot loader
  • 2MB flash memory for copy code
  • SATA interface for external tower link up
  • Supports 21 DVD Recorder:
    Brand Vendor Model
    LiteOn (DVD-R/DVD+R/RW)
    		 LiteOn SHM-165
    Pioneer (DVD-R/DVD+R/RW) Pioneer DVR-115
    NEC (DVD-R/DVD+RW/+R) NEC NEC-5170
  • Support 1 DVD-ROM Reader: Sony DDU-1615
  • Language display: English
  • DVD Media: DVD-RAM/R, DVD-R/RW, DVD+RW/+R
  • Dimension: 150mm(W) x 42mm(H) x 215mm(D)
  • Power Source: DC5V



ONLY WHILST STOCKS LAST!!
1 to 14 System Special Offer Price £450.00 (1 x Host DVD Controller, 1 x Target DVD Controllers, 2 x 9 Bay cases with drives)
1 to 21 System Special Offer Price £650.00 (1 x Host DVD Controller, 2 x Target DVD Controllers, 3 x 9 Bay cases with drives)
Above prices include all the SATA boards and cables required
 Let us build the system for you for an additional £50

Special Offer £500.00 as a complete DVD 1 to 14 system
Special Offer £700.00 as a complete DVD 1 to 21 system
A Hard Disk is not included with these system prices above but is recommended for all DVD Towers above 1 to 1


All prices quoted on this web site are Estimated Street Prices for end-users and exclude Delivery & VAT.

Most items are in stock for next day delivery. Please fax through orders to 0118 988 7301 or e-mail us with your requirements , in either case full contact details such as delivery address, contact phone and fax numbers, together with Credit/Debit card details will be required. Credit cards are accepted subject to a 2% surcharge.  No surcharge on Switch,  Delta or Solo Debit cards. If you prefer not to send your card details via e-mail we will gladly call you back the next day to take these details.

For larger quantities and Computer Trade discounts please call us on 0118 988 7300 or e-mail us with full contact details . If you already hold an account with AVD the goods will be dispatched the same day. New trade account applications can also be dispatched the same day provided a suitable Debit / Credit card can be quoted.
