| BFE and BFF Series |  |
364Kb |

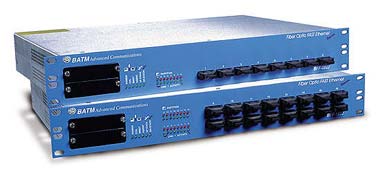

The
Managed Stackable Repeater Fast Ethernet Hub series offers maximum flexibility
for your expanding networking needs. The BFE and BFF series let you expand
the network gradually by stacking the Hubs with up to 96 copper or 72 fiber
optic Fast Ethernet ports. A single management module can manage the entire
stack.

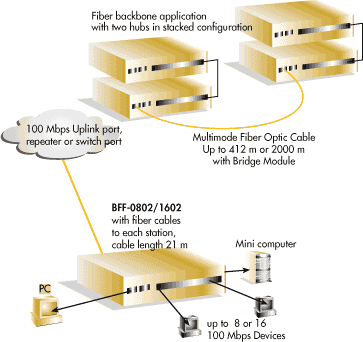

The
BFE/BFF series repeater hubs are equipped with a variety of uplink interfaces.
Uplink modules support 10 and 100Mbps fiber optic or copper backbones.
MAC bridge modules are available for improved network connectivity.
Extensive
monitoring and configuration management are supported by Web management
applications via standard web browser. Additionally, the repeater Hubs
provide complete front panel diagnostics via LED indicators. BFE and BFF
series can be mixed when stacking.
 |
Web management support |
|
Bridging uplinks maximize network congestion control |
|
One SNMP agent supports the whole stack |
|
Remote management via SLIP |
|
Network intrusion protection for extended user and network security |
|
Optional MAC bridge module to maintain LAN interoperability |
|
Collision detection and auto-partitioning |
| Part Number | Description | Uplink Slots |
| BFF-0802 | 8-port 100BaseFX multi-mode Hub | 1 |
| BFF-0802-V | 8-port 100BaseFX multi-mode (VF-45) Hub | 1 |
| BFF-0803 | 8-port 100BaseFX single-mode Hub | 1 |
| BFF-1602 | 16-port 100BaseFX multi-mode Hub | 2 |
| BFF-1603 | 16-port 100BaseFX single-mode Hub | 2 |
| BFE-1202 | 12-port 100BaseTX Hub | 1 |
| BFE-2402 | 24-port 100BaseTX Hub | 2 |
| Modules and Accessories | ||
| BFE-100TX | 100BaseTX uplink module | (“-T” option) |
| BFE-100FX | 100BaseFX uplink module, multi-mode, SC | (“-F” option) |
| BFE-100SM | 100BaseFX uplink module, single-mode, SC | (“-SM” option) |
| BFE-10/100TX | 10/100BaseT/TX auto-negotiation MAC bridge module | (“-B” option) |
| BFE-100GX | 100BaseFX MAC bridge module | (“-G” option) |
| BFE-1200-M | SNMP management agent module (one module per stack) | (“-M” option) |
| BFE-VIEW | GUI interface for Castle-Rock SNMPc for MS-Windows * | |
| BFE-CAB | Stacking cable | |
| Notes: | Each
stack can contain up to 8 BFF-0802/3/4, 8 BFE-1202,
4 BFF-1602/3, 4 BFE-2402 or any combination of the above. For pre-installed uplink modules add: “-T” for 10/100BaseT/TX module “-F”for 100BaseFX multi-mode module “-SM” for 100BaseFX single-mode module “-B” for 10/100BaseT/TX MAC bridge module “-G” for 100BaseFX MAC bridge module For management, add: “-M” for SNMP management agent (one module per stack) |
|
| Example: | BFF-1602-B-M | |
