| BEF Series |
220Kb |
The

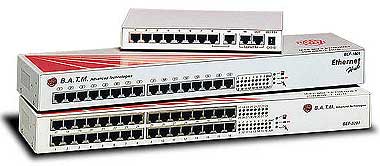

BATM BEF series consists of a 10Base-T hub with one BNC and one AUI port.
It is a full-feature, 19" rack-mount Ethernet Hub designed for workgroup
use, and complies with the IEEE802.3 Ethernet standard. The hub provides
an uplink connection for your network expansion via an RJ45 connector,
making it easy to link two hubs together. It supports BNC and AUI ports
for network backbone connection. Each port features automatic partitioning
and reconnection whenever a network error occurs on its link.
The
BEF series hub features Link/Activity LED’s showing the connection and
activity status of each port. Power and collision indicators show the status
of the hub as a whole. The BEF series hub has an internal universal power
supply rated at 100 to 240 VAC, 50/6OHz. BATM also provides different power
cords based on different international requirements.
 |
Auto-polarity detection, network portitioning |
|
BNC and AUI port on all models |
|
Cascading option on 8-port mode |
|
Packet regeneration, jubber lock-up protection |
|
Desktop and rack-mount versions |
|
LED indicators show individual port activity |
|
8, 16, 32 port repeater hubs, IEEE 802.3 compliant |
| Part Number | Description |
| BEF-0801 | 8-port 10BaseT desk-top Hub, BNC/AUI uplink, external PS |
| BEF-0801-I | Same as BEF-0801, 19” 1U’ enclosure and internal PS |
| BEF-1601 | 16-port 10BaseT Hub, BNC/AUI uplink, 19” 1U’ enclosure, internal PS |
| BEF-3201 | 32-port 10BaseT Hub, BNC/AUI uplink, 19” 1U’ enclosure, internal PS |
| *BEF
hubs include built-in BNC and AUI uplink interfaces.
*Only one of these uplinks can be connected at a time. |
