Managed Media Converters
BFC Series
251Kb

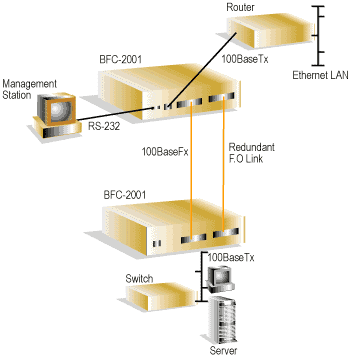

The Fast Ethernet Managed Media Converters are designed to answer a specific need from Telcos for reliable LAN interconnection applications. The Managed Media Converters do not limit the transmitted frame size (for example, they can deliver CISCO ISL protocols). On the LAN side, the media converters have one copper 100BaseTX interface. On the extension side, the BFC-2000 series has one fiber optic interface and optional fiber optic interface which will serve as a backup redundant link for mission-critical applications.

The converters include an SNMP agent and are out-of-band managed via SLIP interfaces. Managed Media Converters also have an optional internal switch to transfer between an AC or a -48VDC power supply. The AC power supply is available with redundancy. The Managed Media Converter can convert Fast Ethernet multi-mode to single-mode.
Features
Complies with IEEE 802.3
Minimum latency
SNMP management
Copper to Fiber and multi-mode to single-mode Fiber available
Redundant switching AC or -48VDC power supplies
Transparent Half Duplex and Full Duplex operation
Redundant Fiber interfaces
Rack mount and desktop mounting available
Full signal retransmission ensuring complete jitter removal
Ordering Information
Part Number LAN side
100BaseTX		 Primary Link
100BaseFX		 Secondary Link
100BaseFX
BFC-2001-RMM  RJ45 Multi-mode, SC Multi-mode, SC
BFC-2001-RVV  RJ45 Multi-mode, VF45  Multi-mode, VF45
BFC-2001-RSS  RJ45 Single-mode, SC  Single-mode, SC
BFC-2001-RXX  RJ45 Single-mode, SC (40 km)  Single-mode, SC (40 km)
BFC-2001-RM RJ45 Multi-mode, SC -
BFC-2001-RS RJ45 Single-mode, SC -
BFC-2001-RX  RJ45 Single-mode, SC (40 km)  -
BFC-2003-CMM  Mini-C Multi-mode, SC  Multi-mode, SC
BFC-2003-CVV  Mini-C Multi-mode, VF45  Multi-mode, VF45
BFC-2003-CSS  Mini-C Single-mode, SC  Single-mode, SC
BFC-2003-CXX  Mini-C Single-mode, SC (40 km)  Single-mode, SC (40 km)
BFC-2003-CM  Mini-C Multi-mode, SC  -
BFC-2003-CS  Mini-C Single-mode, SC -
BFC-2003-CX  Mini-C Single-mode, SC (40 km) -
BFC-2004  SC Multi-mode, SC  Single-mode, SC
BFC-2004-EX  SC Multi-mode, SC  Single-mode, SC (40 km)
Notes:
All BFC-2xxx models are 1U’ 19” desk-top or rack-mountable and include internal AC power supply.
All BFC-2xxx models include a built-in SNMP agent
For power supply options, add: “-R” for redundant switching power supply
“-D”for –48VDC power supply
Example:  BFC-2001-RS-D
