MT-RJ Media Converters
BFC Series
224 Kb

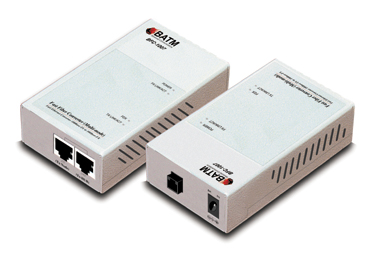

Ethernet and Fast Ethernet Modular Fiber Media Converter (MT-RJ)

BATM offers the finest available twisted pair to fiber optic transceivers. The proliferation of cost-effective fiber optic solutions, such as MT-RJ, allows fuss free extension of the local area network far beyond the limits of the traditional copper infrastructure. LANs can be extended to distances of up to 2 kilometers (1.24 miles) using multi-mode fiber. Six diagnostic LEDs for power, speed, copper and fiber link/activity, and copper and fiber full-duplex collision make supervision of the transceiver is simple. The modular nature of the transceivers allows it to be used alone or grouped together with other transceiver in a chassis.

Features
Supports auto-negotiation
Compact size and easy to install
Distance of up to 2 km for multi-mode fiber
6 Diagnostic LEDs
Can be used stand-alone or mounted in a chassis
Ordering Information
Fast Ethernet Fiber Optic Converters
Part Number Description Connectors Mounting Power Supply
BFC-1007 100BaseTX to 100BaseFX (1300nm), Multi Mode RJ-45 to MT-RJ Desktop External
