Chassis Mounted Media Converters
TOR, BMT and BFC Series
749Kb
Chassis-Mounted Ethernet, Fast Ethernet and Token Ring Media Converters

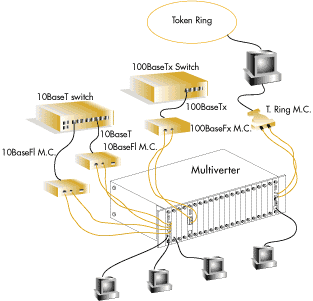

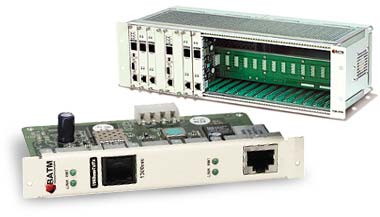

The BATM Multiverter is a universal enclosure designed to power up various Media Converters Plug-in Cards. A combination of Ethernet, Fast Ethernet, and Token Ring converters can be installed in the Multiverter. Each Multiverter can hold up to: 21 Fast Ethernet media converter cards with one port each; 21 Ethernet media converter cards with 2 ports each (total of 42 ports); 21 Token Ring media converter cards with one port each, or any combination of the above. The media converters support copper, fiber multi-mode, fiber single-mode, and fiber single-mode extended-distance interfaces. BATM’s Multiverter supports a variety of F.O. connectors, including ST, SC and 3M Volition™ VF-45™ connector.
The chassis is compliant with all relevant RFI/EMI regulations and standards. The internal power supply can be delivered as switching, redundant, or -48V DC.
Features
Variety of F.O. connectors (ST, SC, VF-45)
All media converters available as stand-alone
Multi-mode and single-mode converters available
Same chassis rack mount enclosure for all popular media converter protocols
Ordering Information
Part Number Description
19" 3U' rack mountable chassis for 21 plug-in cards
TOR-2006-S 19" 3U' multiverter with internal AC power supply
TOR-2006-R 19" 3U' multiverter with redundant AC power supply
TOR-2006-D 19" 3U' multiverter with -48VDC power supply
TOB-0001 Balnk panel for TOR-2006 multiverter series
Ethernet media converters plug-in cards for multiverter
BMT-2046-M 2-port 10BaseT to single-mode 10BaseFL (ST), plug-in card
BMT-2047-M 2-port 10BaseT to multi-mode 10BaseFL (VF45), plug-in card
Fast Ethernet media converters plug-in cards for multiverter
Part Number Description
BFC-1002-M 100BaseTX to multi-mode 100BaseFX (SC), plug-in card
BFC-1003-M  100BaseTX to single-mode 100BaseFX (SC, 14 km), plug-in card
BFC-1004-M 100BaseTX to single-mode 100BaseFX (SC, 40 km), plug-in card
BFC-1005-M  100BaseTX to multi-mode 100BaseSX (VF45), plug-in card
BFC-1006-M 100BaseTX to multi-mode 100BaseFX (VF45), plug-in card
Repeater converter plug-in cards for multiverter
TOR-0616-M Fiber optic multi-mode to DB9/f &RJ45 module
TOR-0616-SM-M Fiber optic single-mode to DB9/f &RJ45 module
TOR-0616-MV Trank & lobe fiber optic multi-mode to DB9/f &RJ45 module
Modules and accessories
PT-IDC-0.5 DB9/m to IDC pigtail, 0.5m (19.5")
PT-IDC-1.2 DB9/m to IDC pigtail, 1.2m (47.25")
PT-RRS-0.5 RJ45/s to RJ45/s pigtail, 0.5m (19.5")
PT-RRS-1.2 RJ45/s to RJ45/s pigtail, 1.2m (47.25")
PT-DB9/M-0.5 DB9/m to DB9/m pigtail, 0.5m (19.5")
PT-DB9/M-1.2 DB9/m to IDC pigtail, 1.2m (47.25")
PS-EX0616 External power supply for the TOR series
