VDSL
(Very high bit rate Digital Subscriber Line) is the most robust answer
to the growing broadband access needs of consumers and businesses. Utilizing
innovative 10BaseS technology over VDSL data can be transferred over the
existing PSTN (Public Switched Telephone Network) at the rate of 10BaseX
Ethernet (10 Mbps) for a distance of up to 1350 meters (4400 ft.). 10BaseS
technology is fully compatible with Ethernet and therefore allows seamless
transmission of TCP/IP over VDSL. Hence, high-speed Internet access and
demanding multimedia and video converencing applications can become banal.
BATM’s
integrated VDSL solution is based on advanced QAM (Quadrature Amplitude
Modulation) technology whose fast and vigorous channel equalization and
signal accquisition allow symmetrical bi-directional data transfer over

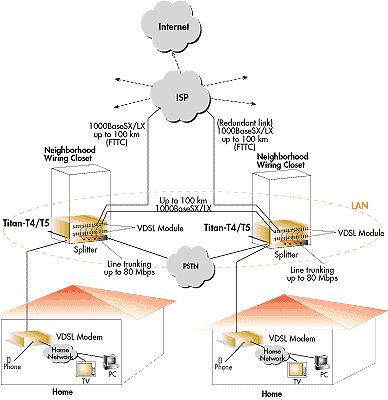

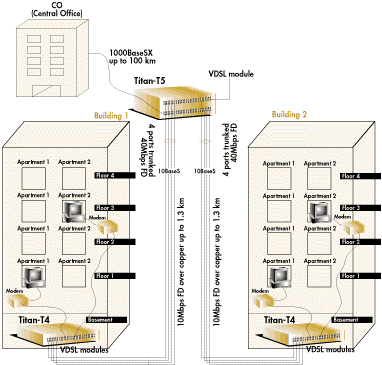

the existing PSTN. The BATM VDSL solution’s is main components are the

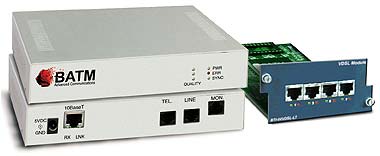

10BaseS NT modem and the 10BaseS NT/LT 4 port modules for BATM Titan switches,
and the 10BaseS POTS Splitter.
 |
Supports POTS/PABX services on the same line |
|
10 Mbps Standard Ethernet over telephone lines |
|
Supports distances of up to 1.35 km at 10 Mbps (FD) |
|
Minimum interferences with other wire pairs and services |
|
Robust line trunking for enhanced performance |
|
Testing and management capabilities |
|
Per port monitoring capability Advanced QAM technologies |
|
Multiple VDSL connections |
|
Wire speed performance |
|
Low power consumption minimal heat dissipation |
|
Standard RJ-45 and RJ-11 interfaces |
| Part Number | Description | Distance | Connector |
| BTI-4VDSL-LT | 4 port 10BaseS VDSL interface module, 10 Mbps FDX line termination (for normal operation) | upto 1.35 km | RJ45 |
| BTI-4VDSL-NT | 4 port 10BaseS VDSL interface module, 10 Mbps FDX network termination (for cascading) | upto 1.35 km | RJ45 |
| BTI-4VDTX-LT | 4 port 10BaseS VDSL plus 4 port 10/100BaseTX interface module | . | RJ45 |
| BTI-08SPT | 10BaseS POTS Splitter | ||
| NTU-1005 | 10BaseS NT Modem RJ45 | ||
